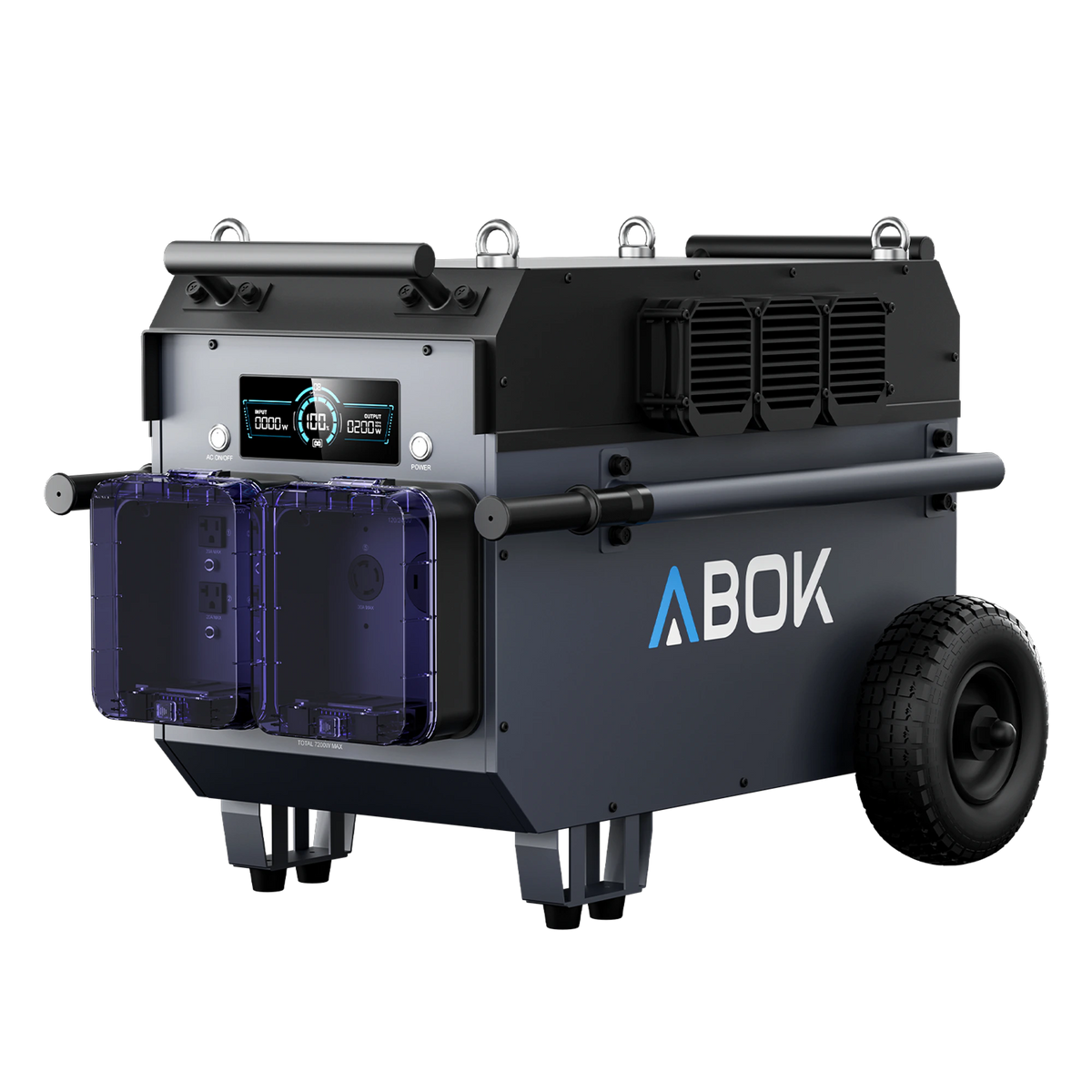

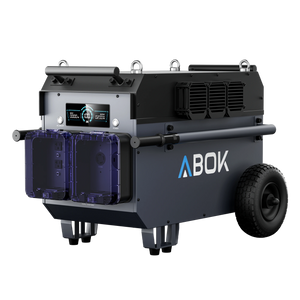

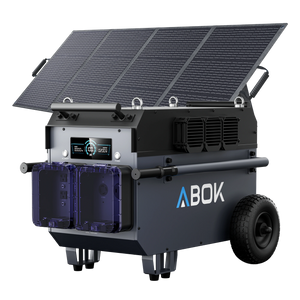

ABOK Ark7200 Plus Power Station (9792Wh)
- 9792Wh capacity: built with EVE LF100LA battery cells and expandable with up to two AE9792 extra batteries for a total of 29,376Wh.

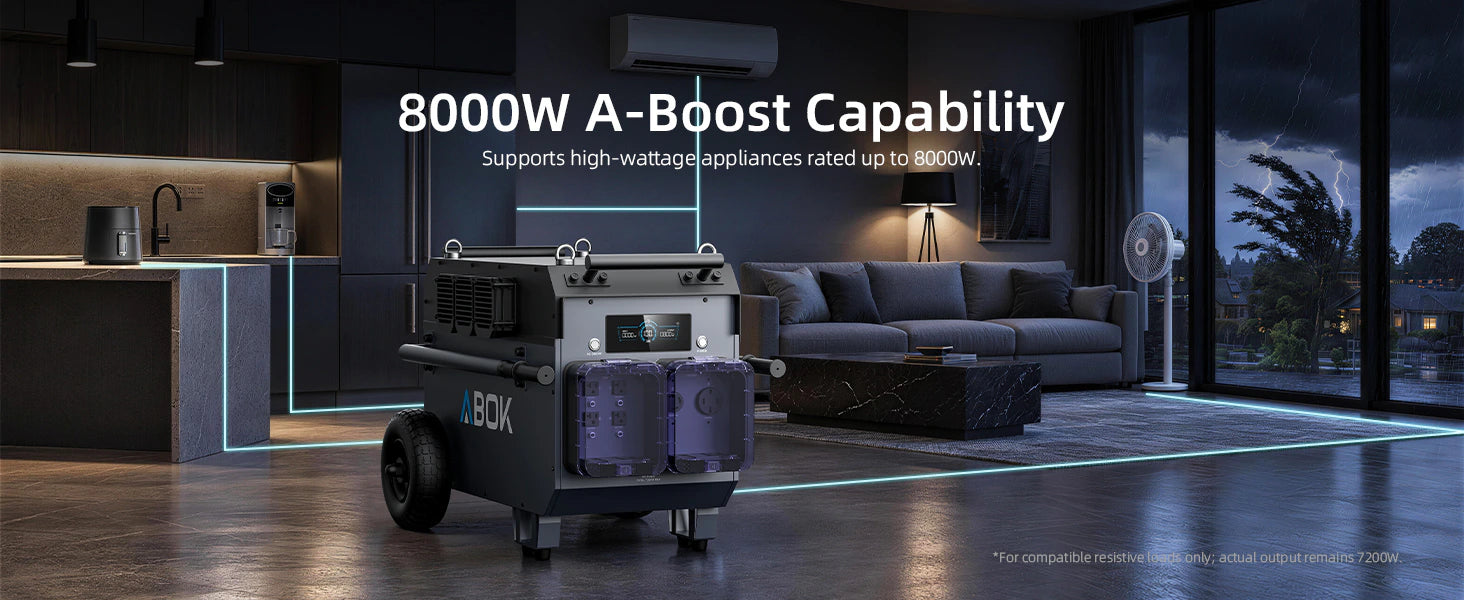

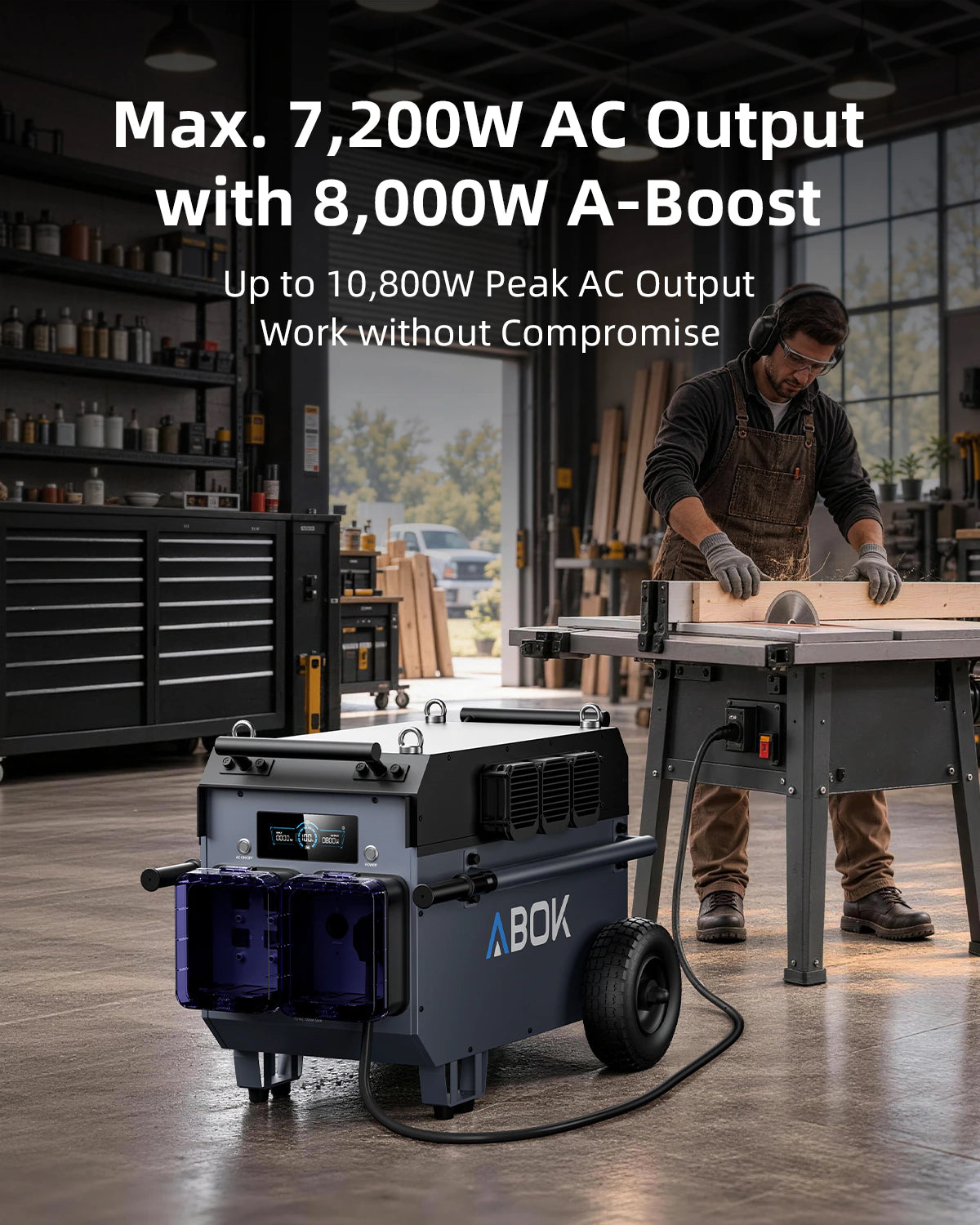

- 120V and 240V power: 3600W at 120V or 7200W at 240V, with up to 8000W A-Boost and 10,800W peak output at 240V.

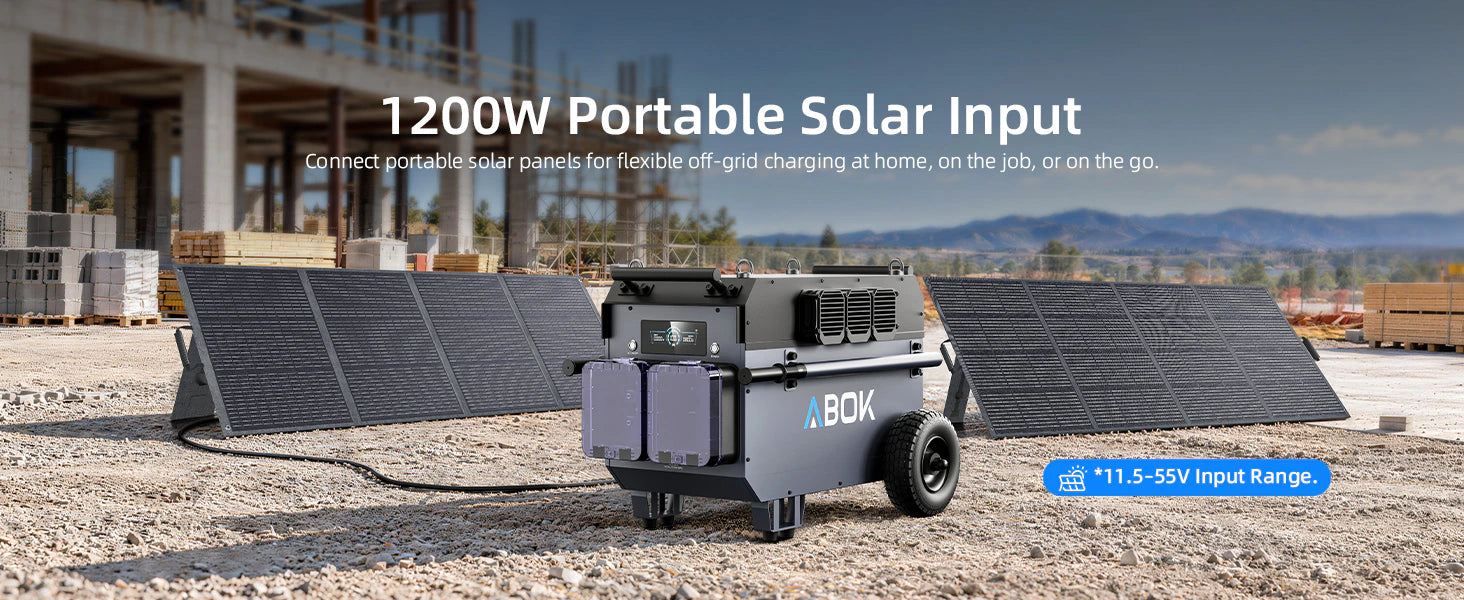

- Flexible solar charging: 1200W low-voltage solar input (11.5–55V, XT90) and 2500W high-voltage solar input (120–450V, MC4).

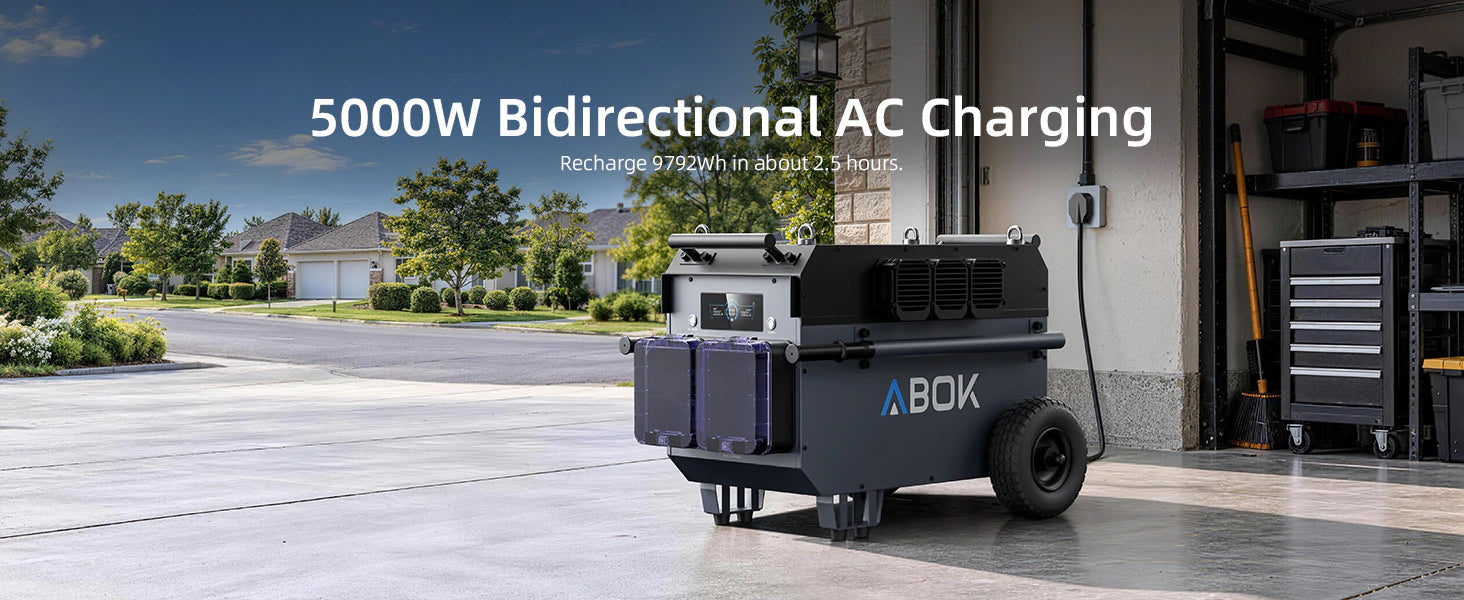

- Fast AC charging: up to 1800W from 120V AC or 5000W from 240V AC, plus car-charging support through XT60.

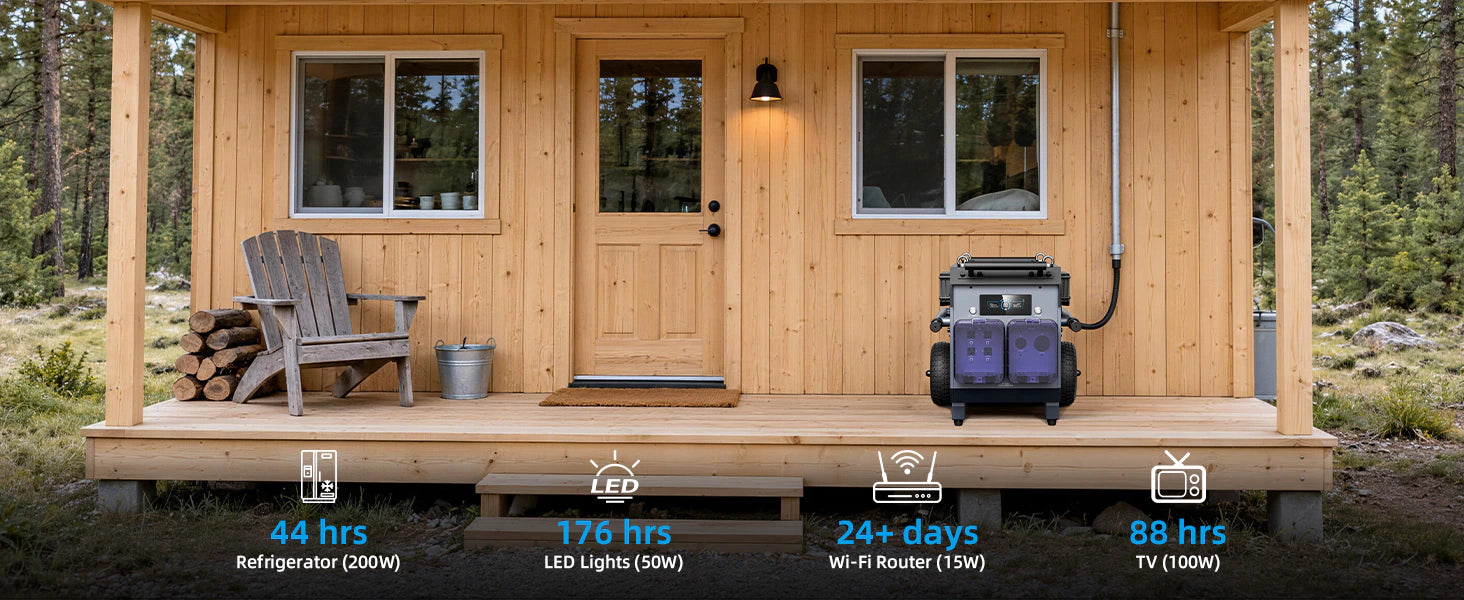

- Built for backup power: app control, LCD display, waterproof bag, integrated handles, and an operating range from -10°C to 40°C.
ABOK Ark7200 Plus Power Station (9792Wh)
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
BATTERY PACK
Capacity
9792Wh
Series-Parallel
15S2P
Pack Voltage
48V
Ampere-hour
200Ah
Battery Cell
EVE LF100LA
EXTRA BATTERY
Model
AE9792
Capacity
9792Wh
Expandable in Parallel
2
Size
843×522×580mm / 33.2×20.6×22.8in
Weight
113.5kg
OUTPUT
AC Output Power (US)
3600W (120V) / 7200W (240V)
A-Boost (US)
4500W (120V) / 8000W (240V)
Peak Output (US)
5400W (120V) / 10800W (240V)

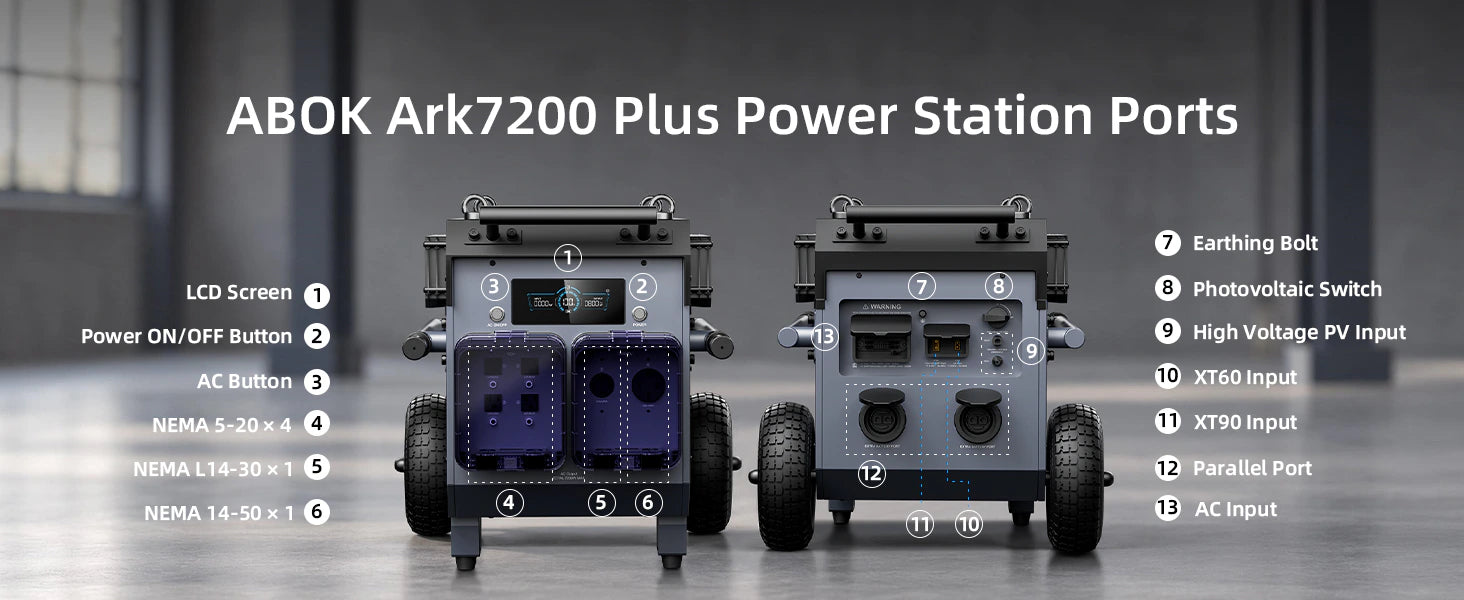

AC Output Ports (US)
NEMA 5-20×4, NEMA L14-30×1, NEMA 14-50×1
USB Output
-
DC Output
-
INPUT
AC Input Power (US)
1800W (120V) / 5000W (240V)
PV Input Low Voltage
11.5–55V / 1200W / XT90
PV Input High Voltage
120–450V / 2500W / MC4
Car Charger
Supported / XT60
FEATURES
LCD
✔
App Control
✔
Waterproof Bag
✔
Handle
✔
SPECIFICATIONS
Size
888×528×551mm / 34.9×20.7×21.6in
Weight
130kg / 286.6lb
Operating Temperature
-10°C to 40°C
BATTERY PACK
EXTRA BATTERY
OUTPUT
INPUT
FEATURES
SPECIFICATIONS

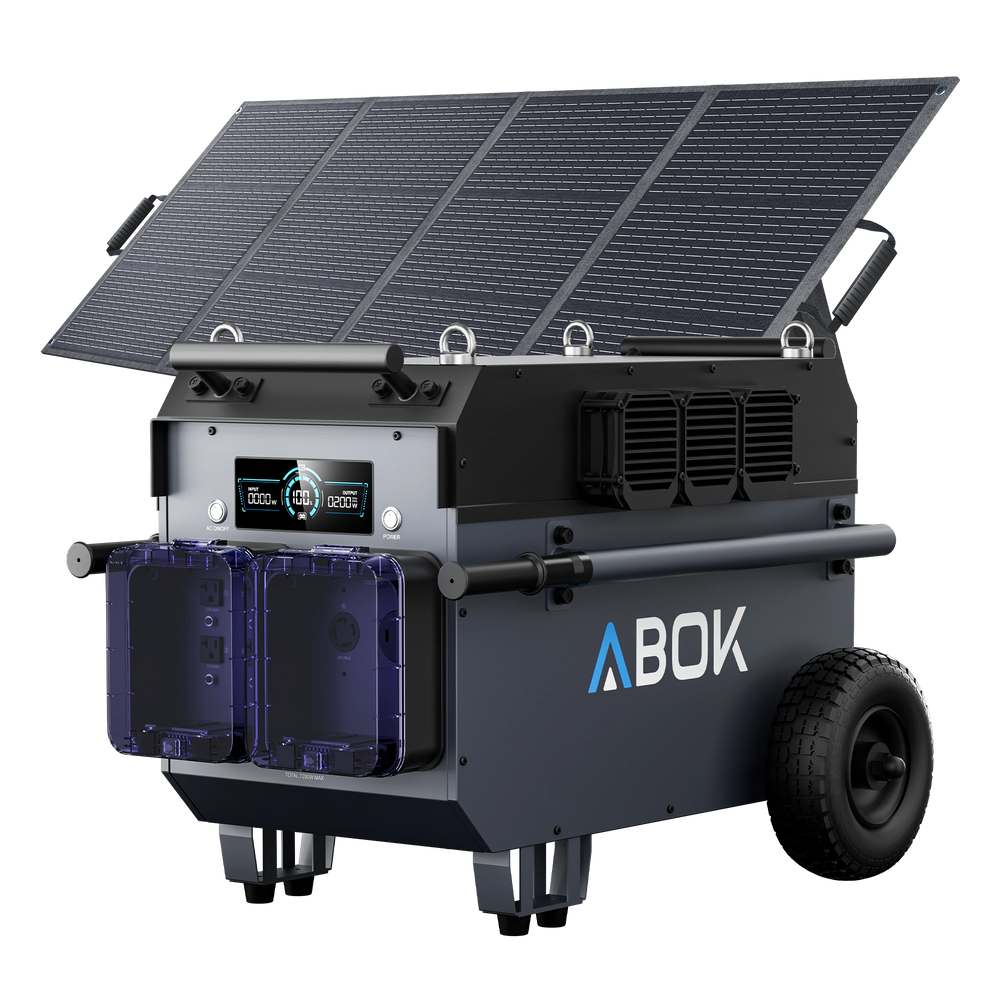

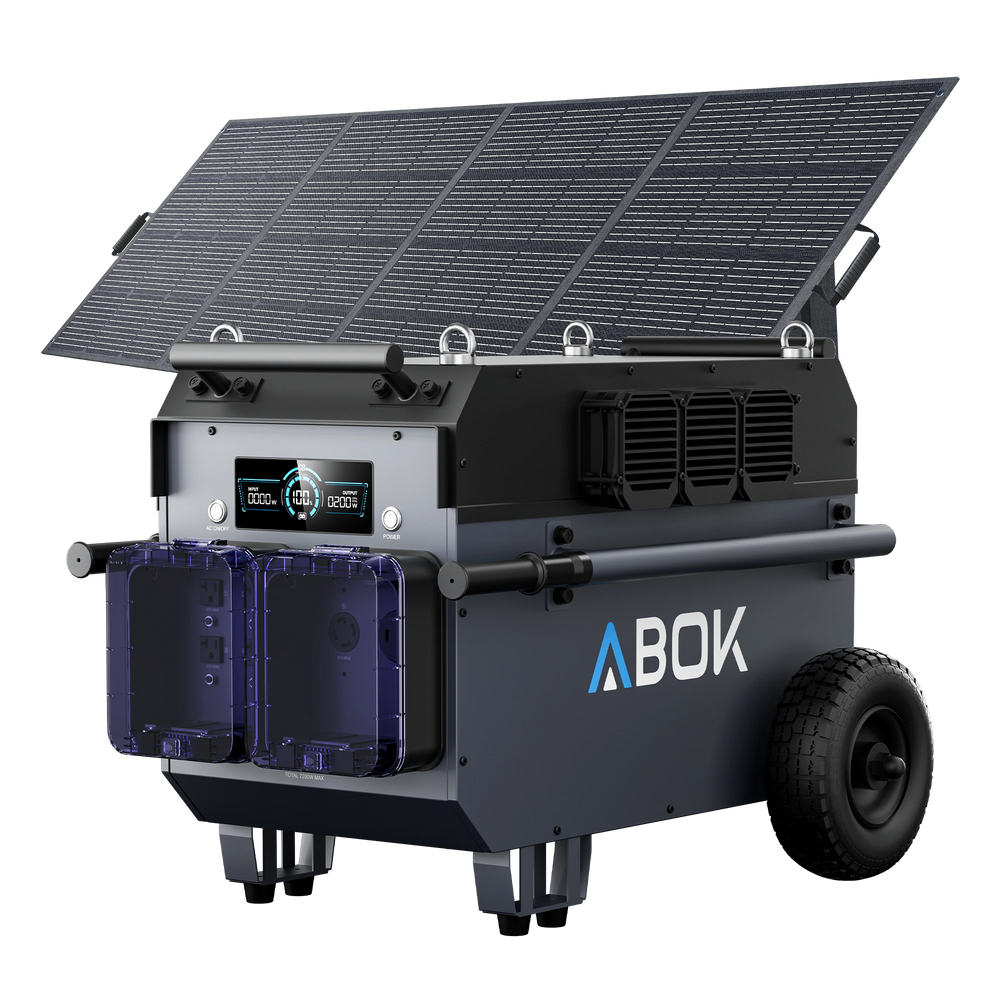

Solar Panel
Solar Panel Power
400W
Type of Solar Panel
Monocrystaline
Open-circuit Voltage
48V
Operating Voltage
40V
Short Circuit Current
11A
Operating Current
10A
OUTPUT
Output Port
MC4
Output Wire Length
1.5m
FEATURES
IP Rating
IP68
SPECIFICATIONS
Size
2730*769*30mm
Weight
9.7kg
Operating Temperature
-10℃-70℃
