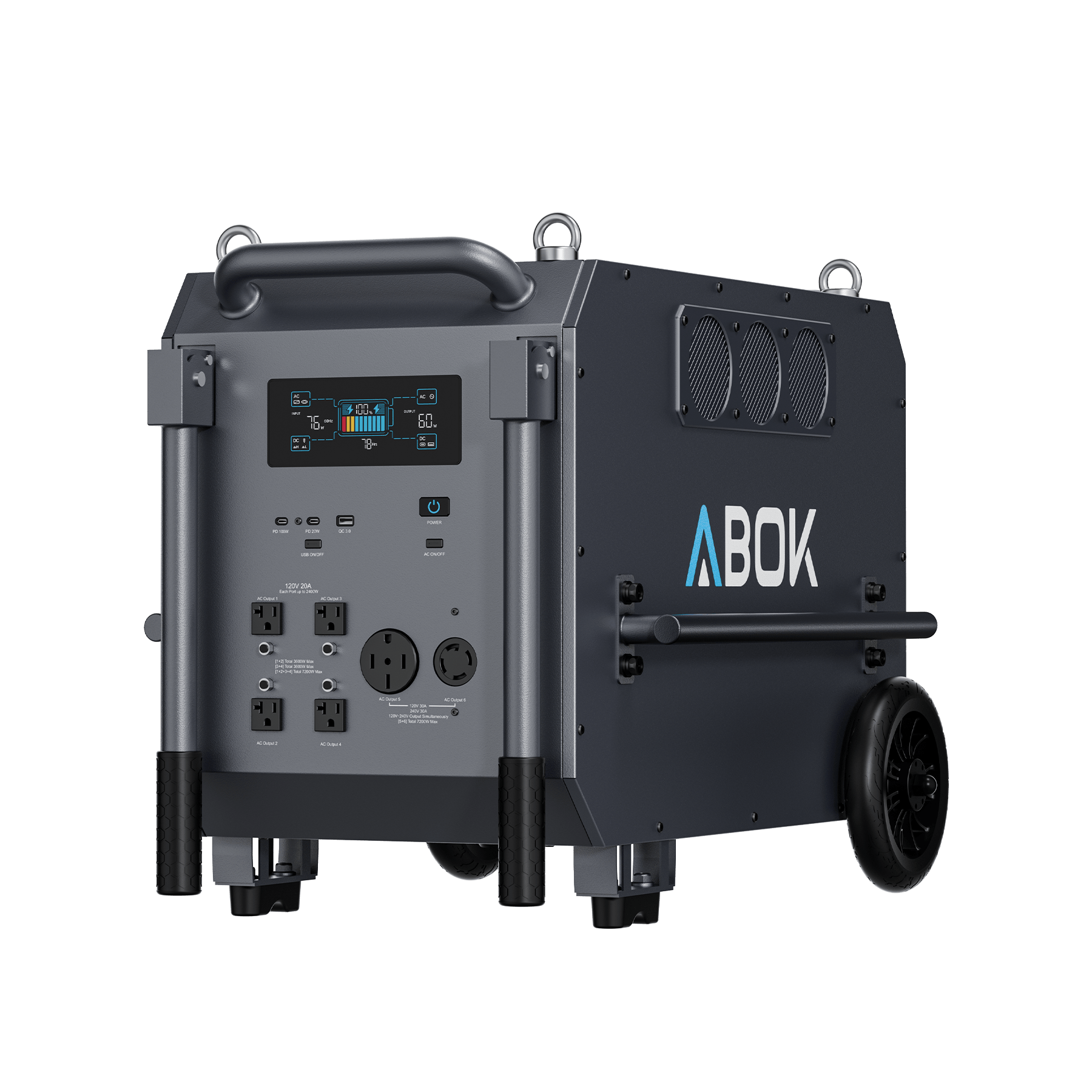

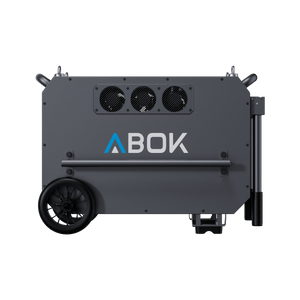

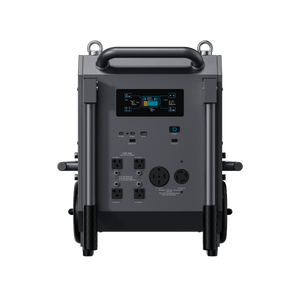

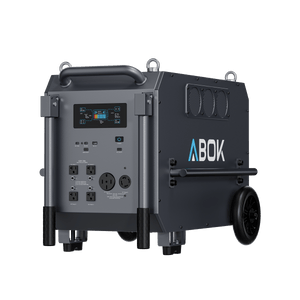

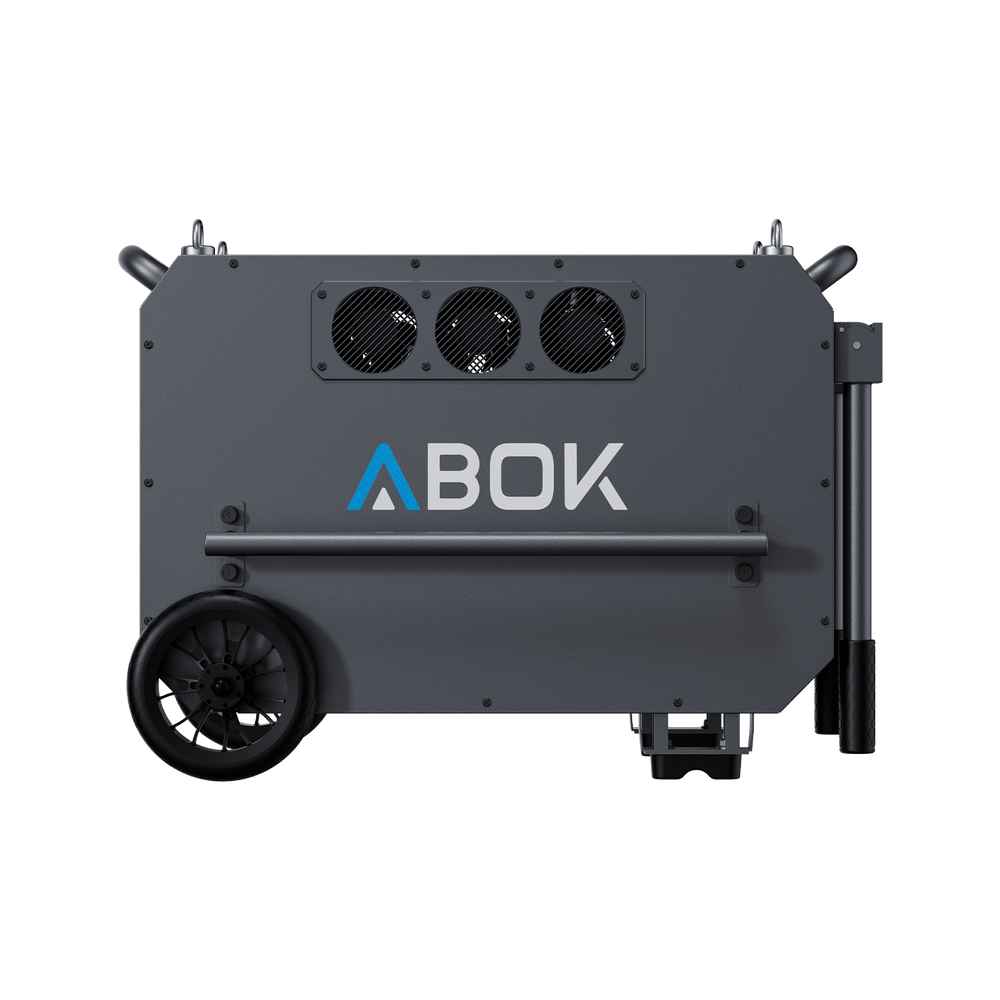

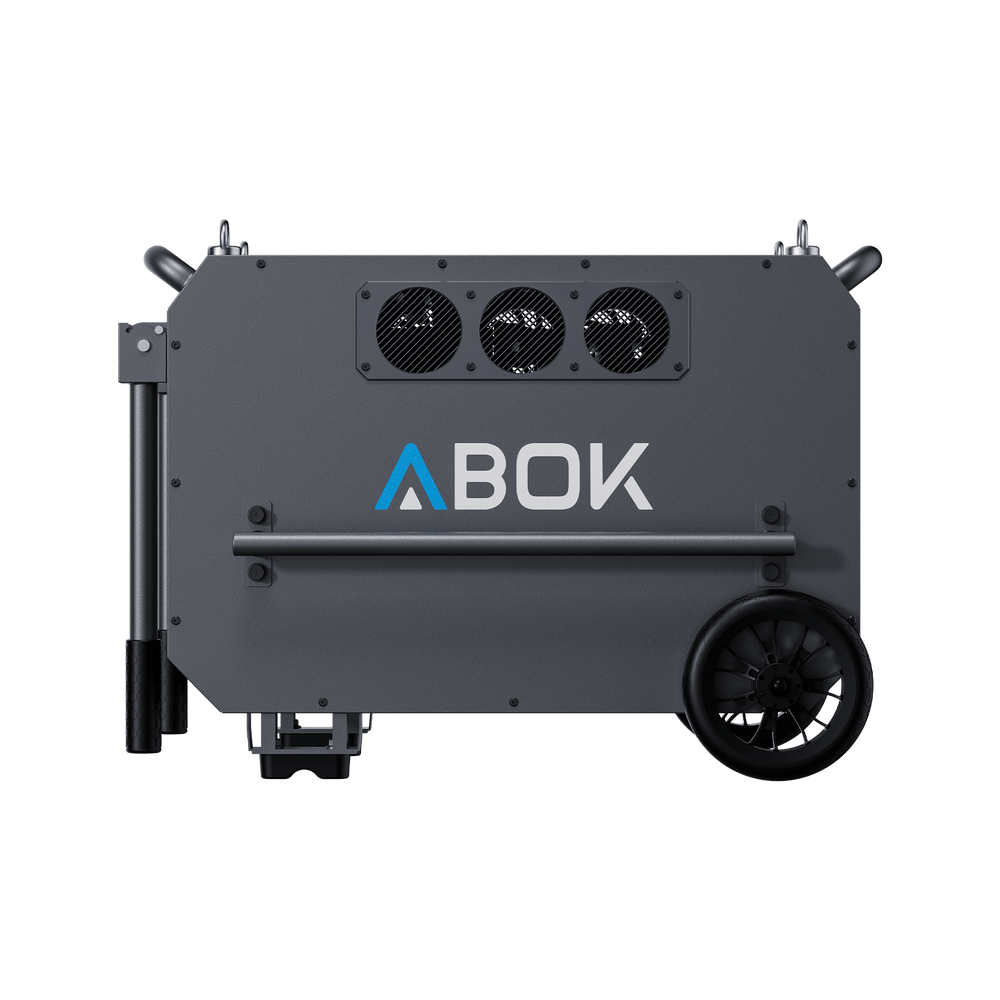

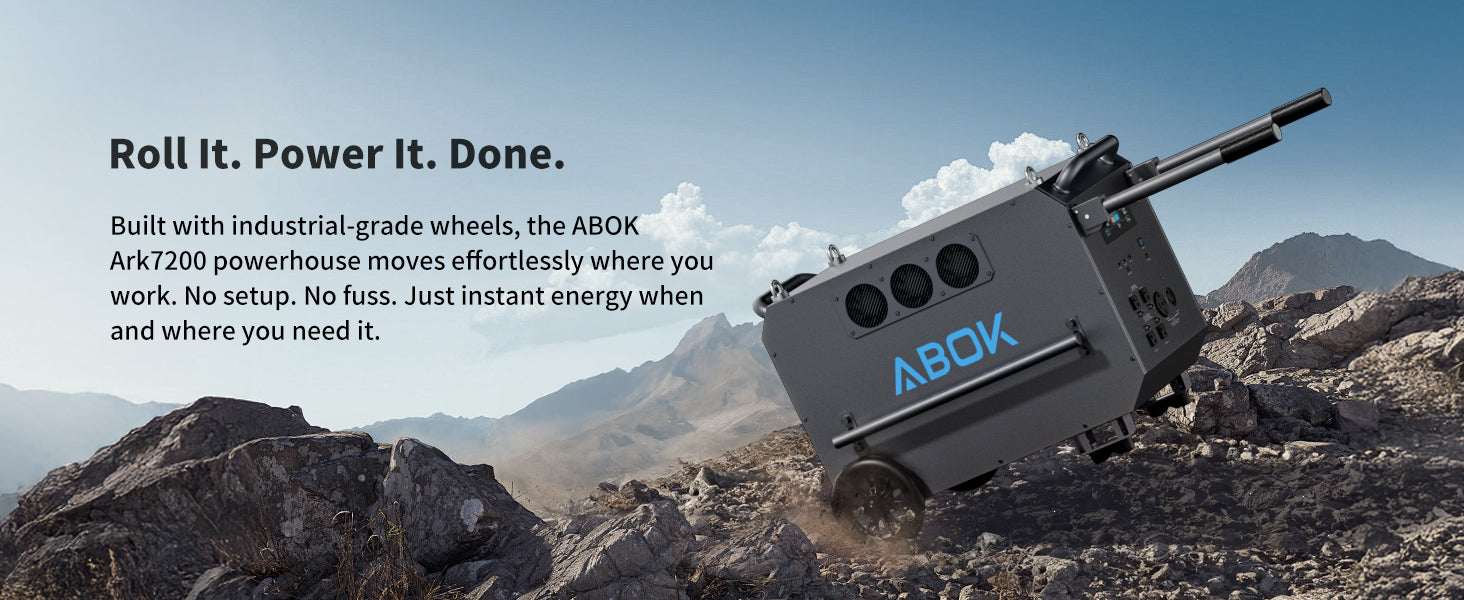

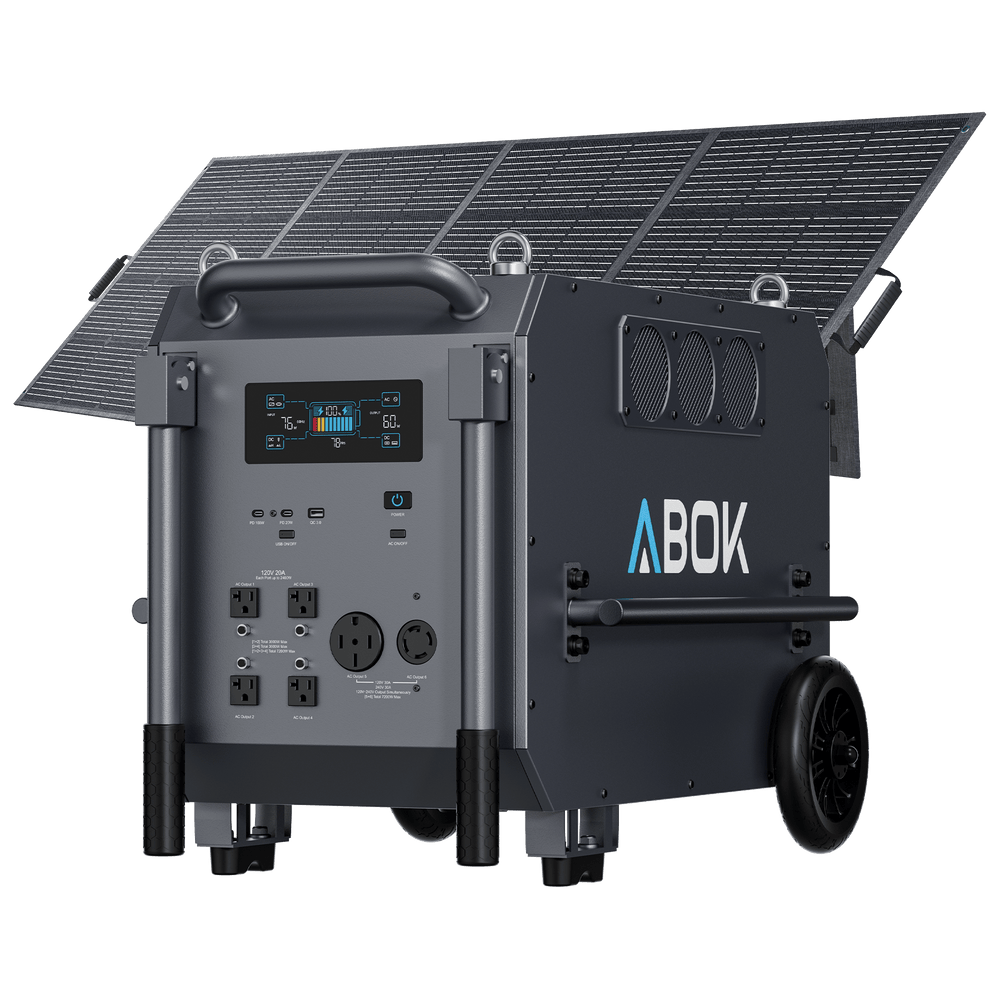

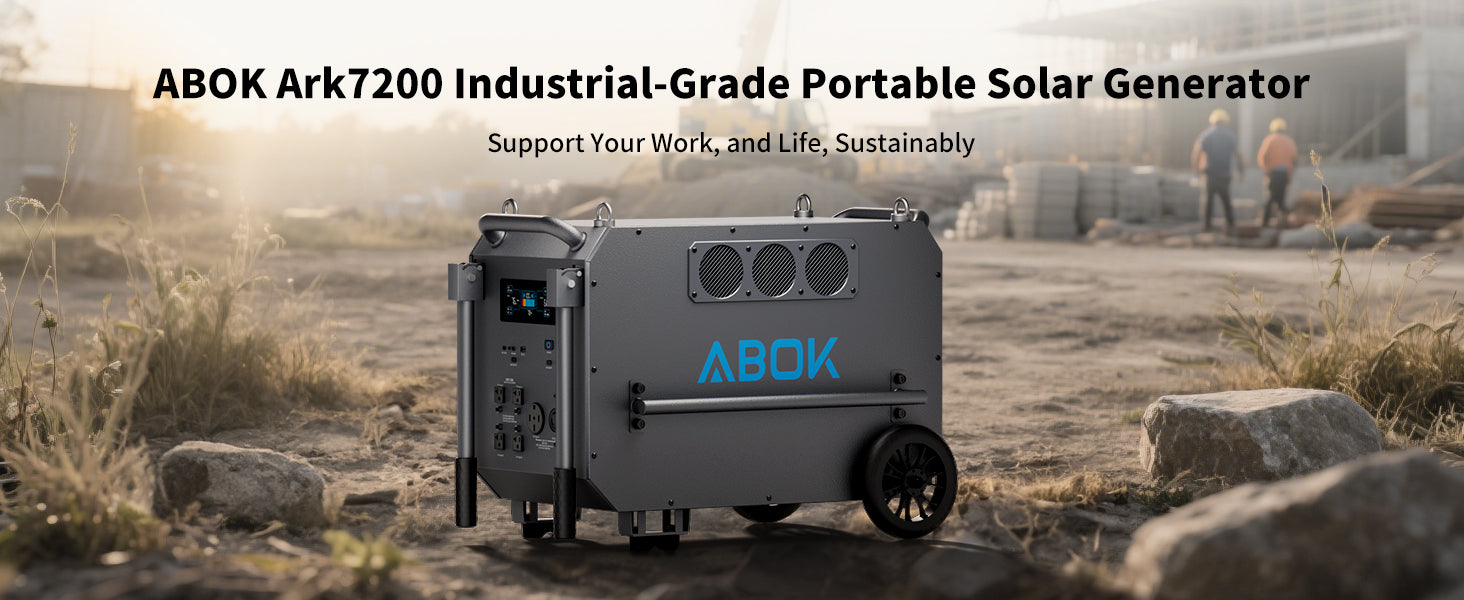

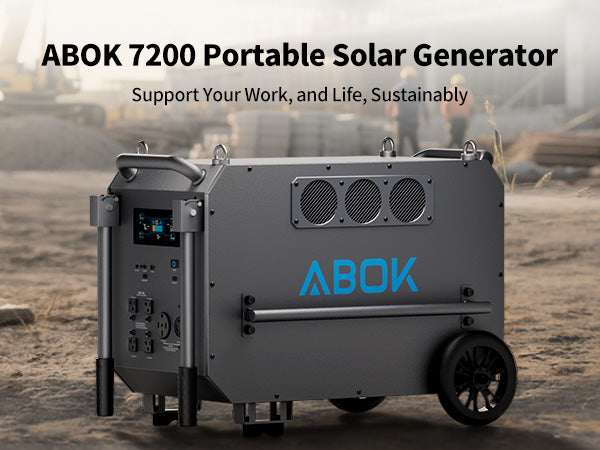

ABOK Ark7200 Power Station(9792Wh)

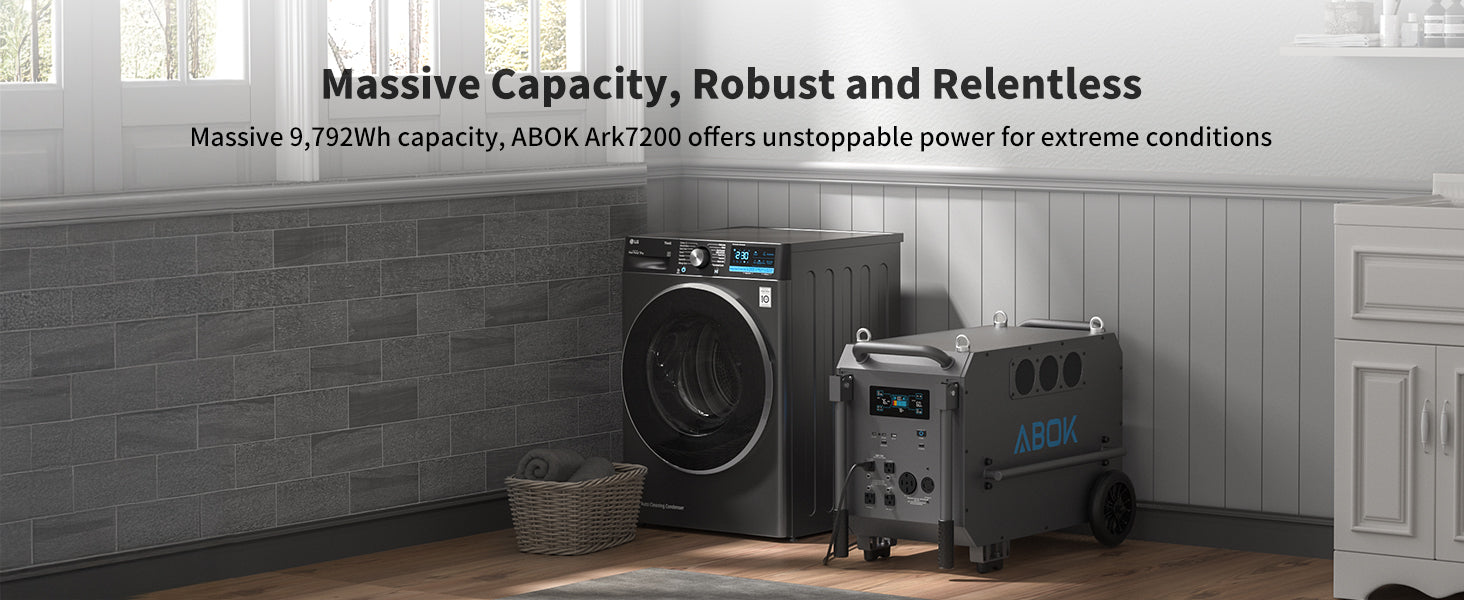

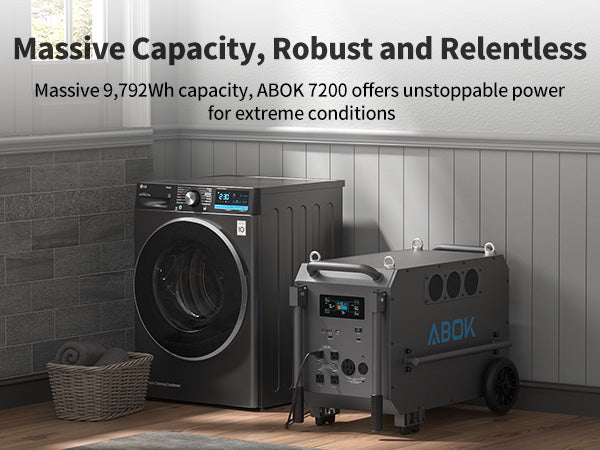

- 9792Wh capacity supports heavy-duty tools & home backup; expandable to 29376Wh

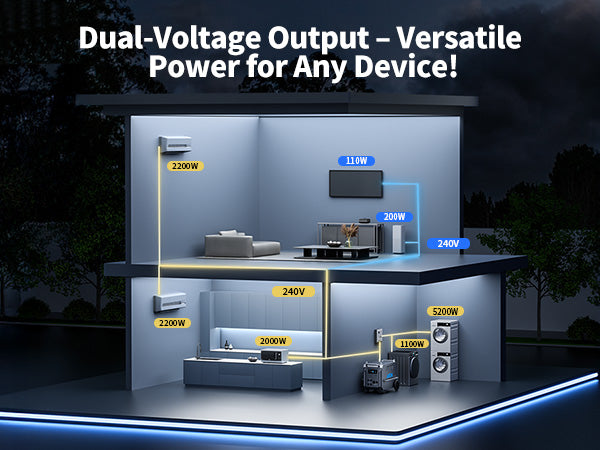

- 9 output ports including 7200W dual-phase AC & 100W USB-C Power Delivery Protocol for global compatibility
- <0.01s EPS switchover keeps sensitive devices uninterrupted during blackouts
- Recharges via 2500W solar, 5kW AC or car input—stay powered anywhere

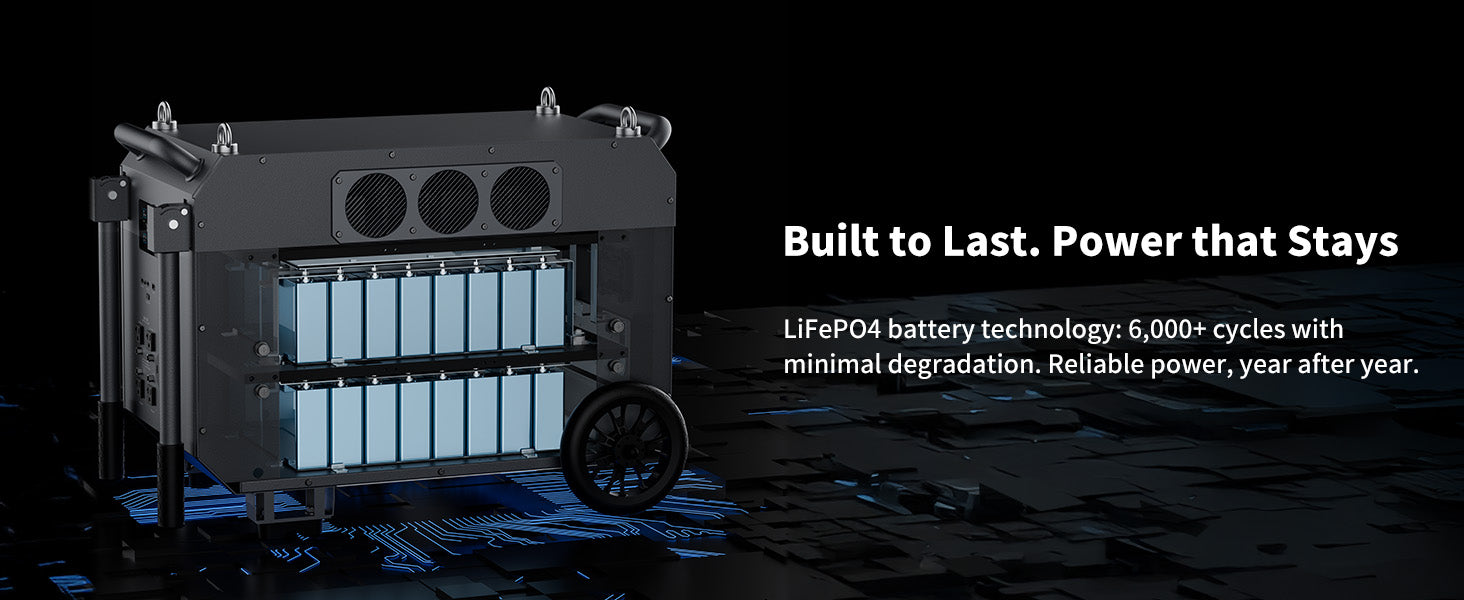

- EV-grade LiFePO₄ battery with 4000+ cycles, runs ultra-quiet below 30dB
ABOK Ark7200 Power Station(9792Wh)
If you have any questions, you are always welcome to contact us. We'll get back to you as soon as possible, within 24 hours on weekdays.
-
Shipping Information
Use this text to answer questions in as much detail as possible for your customers.
-
Customer Support
Use this text to answer questions in as much detail as possible for your customers.
-
FAQ’s
Use this text to answer questions in as much detail as possible for your customers.
-
Contact Us
Use this text to answer questions in as much detail as possible for your customers.
BATTERY PACK
Capacity
9792Wh
Series-Parallel
15S2P
Pack Voltage
48V
Ampere-hour
204Ah

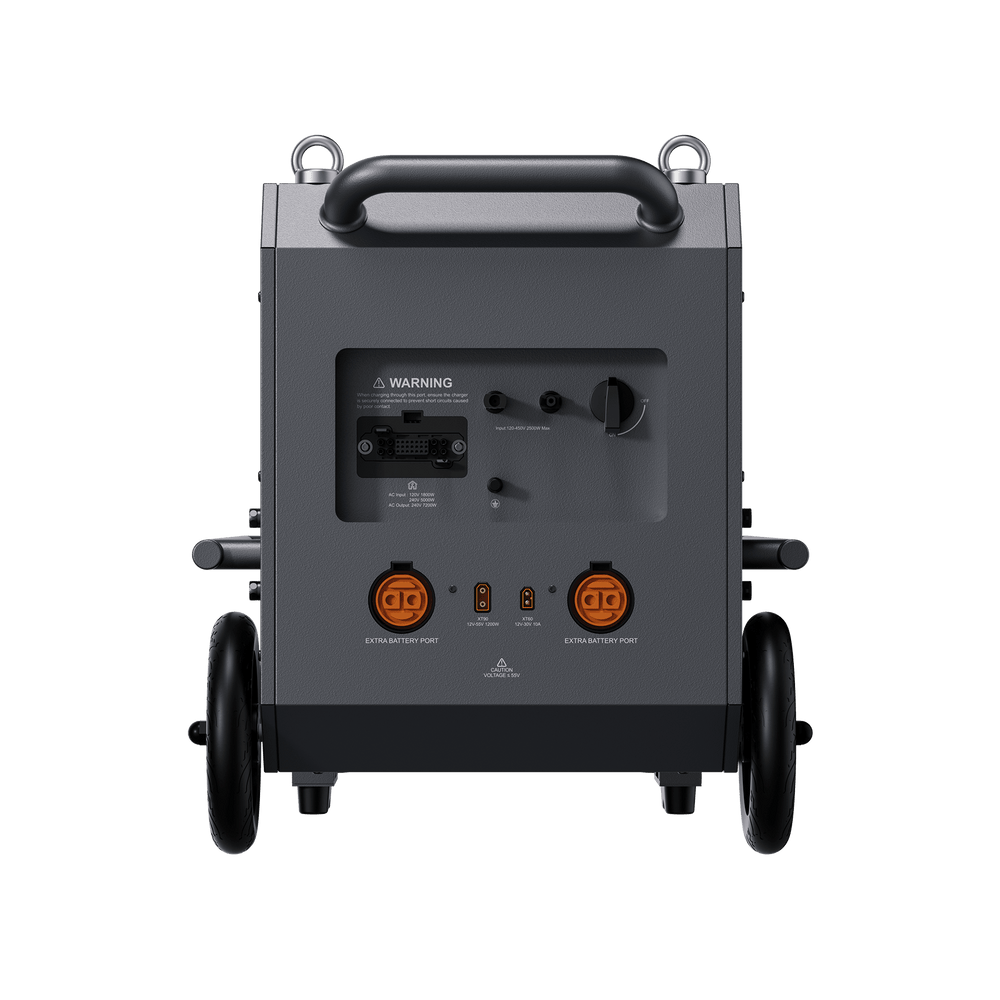

EXTRA BATTERY
Capacity
9792Wh
Expandable in Parallel
2
OUTPUT
AC single-phase Output Power (US)
3600W
AC two-phase Output Power (US)
7200W

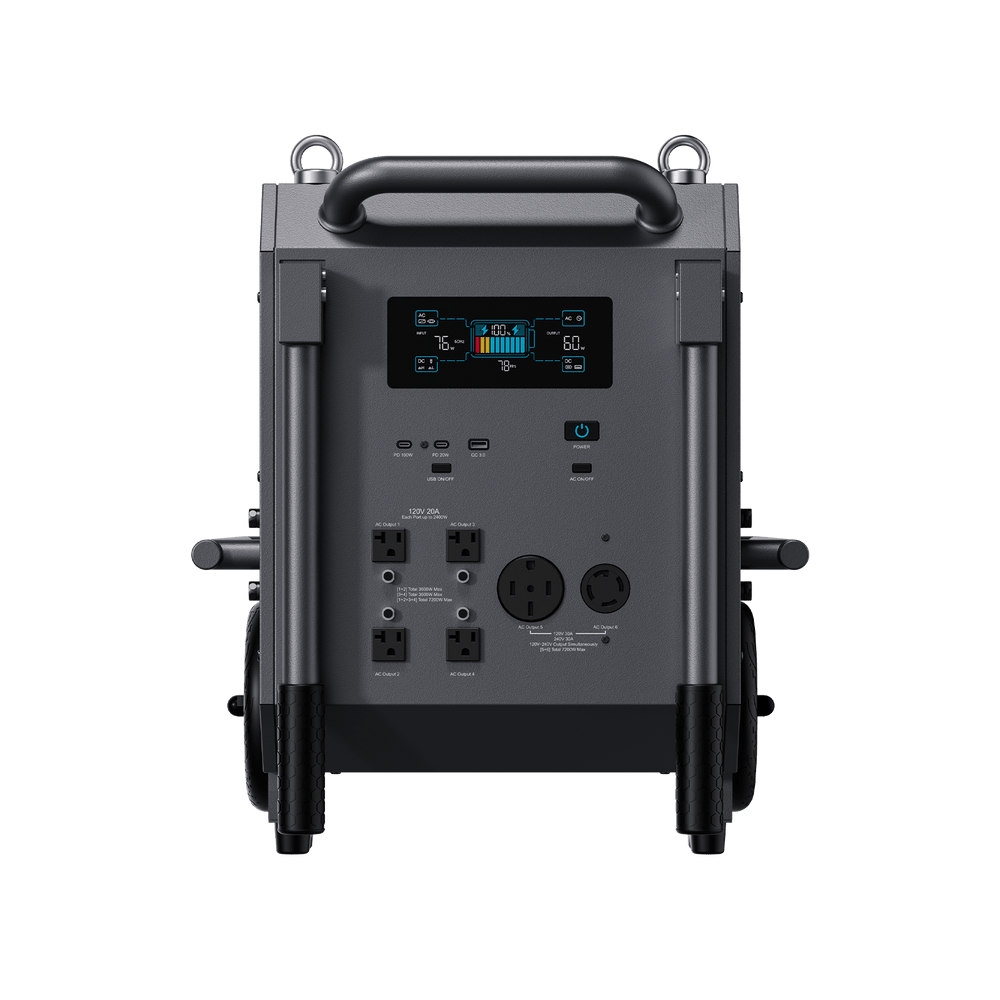

AC Output Ports (US)
NEMA14-50R*1+NEMAL14-30R*1+NEMA 5-20*4
USB Output
QC 3.0*1 PD 20W*1 PD 100W*1
INPUT
AC single-phase Input Power (US)
1800W
AC two-phase Input Power (US)
5000W
PV Input Low Voltage
11.5-30V(XT60) 11.5-55V(XT90)
PV Input High Voltage
120-450V(MC4)
PV Input Power
300W(XT60) 1200W(XT90) 2500W(MC4)
Car Charger
✔
PV/Car Input Port
XT60(Car Charger) XT90(Low Voltage) MC4(High Voltage)
FEATURES
LCD
✔

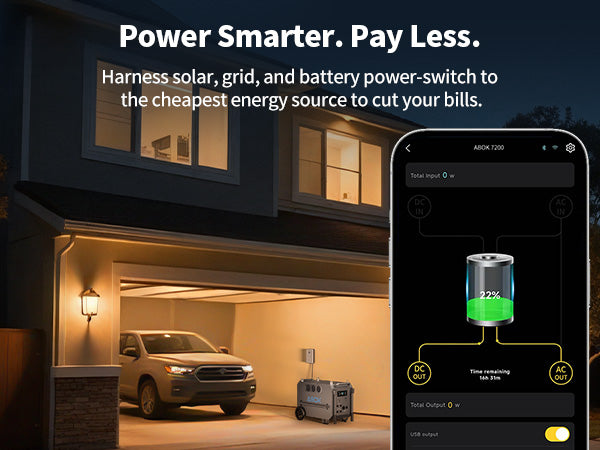

App Control
✔
Waterproof Bag
✔
Telescopic Rod
✔
SPECIFICATIONS

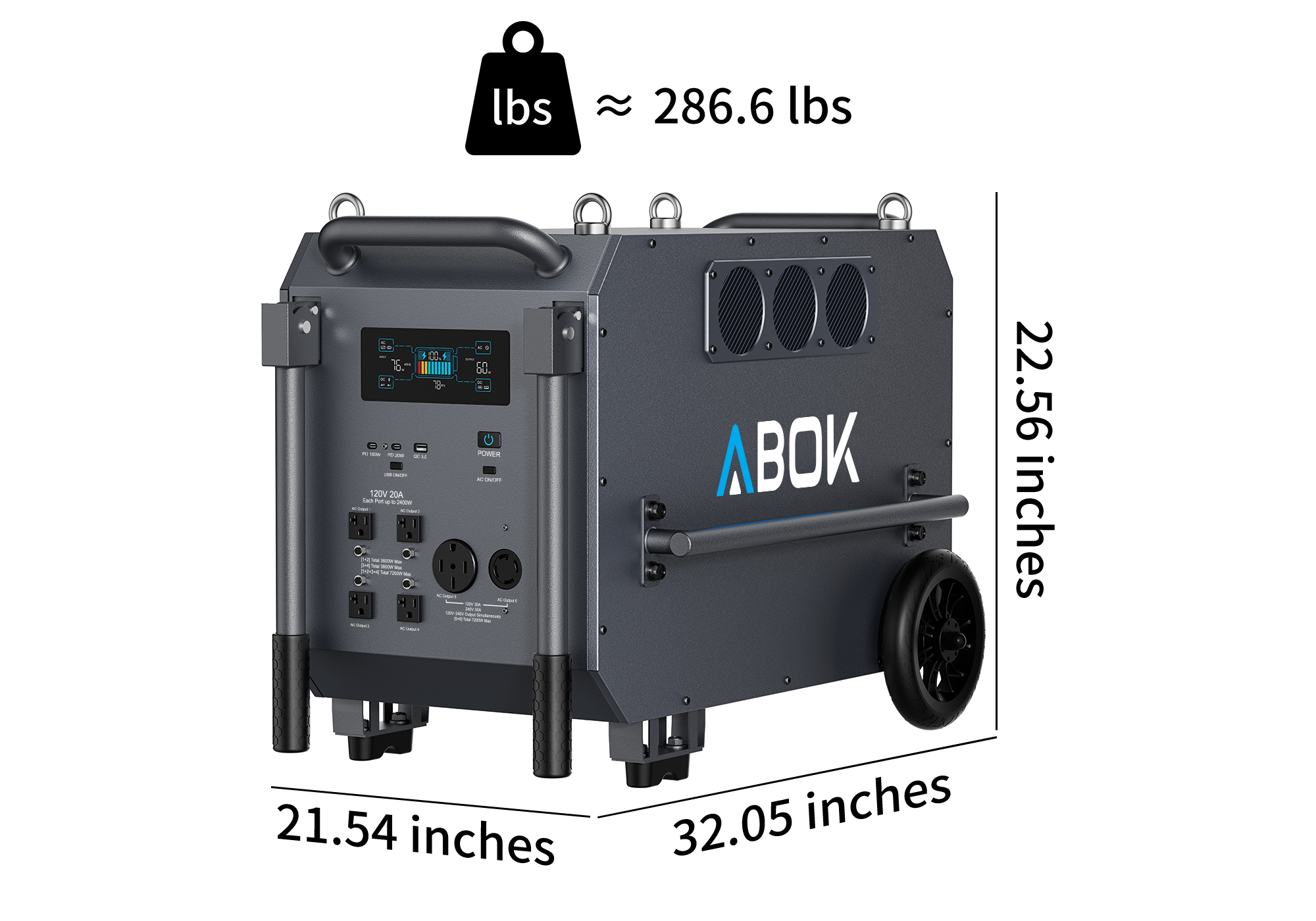

Size
814*547*573mm 32.1×21.5×22.6in
Weight
130kg
Operating Temperature
-10℃-40℃
BATTERY PACK
EXTRA BATTERY
OUTPUT
INPUT
FEATURES
SPECIFICATIONS

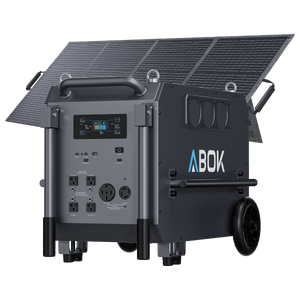

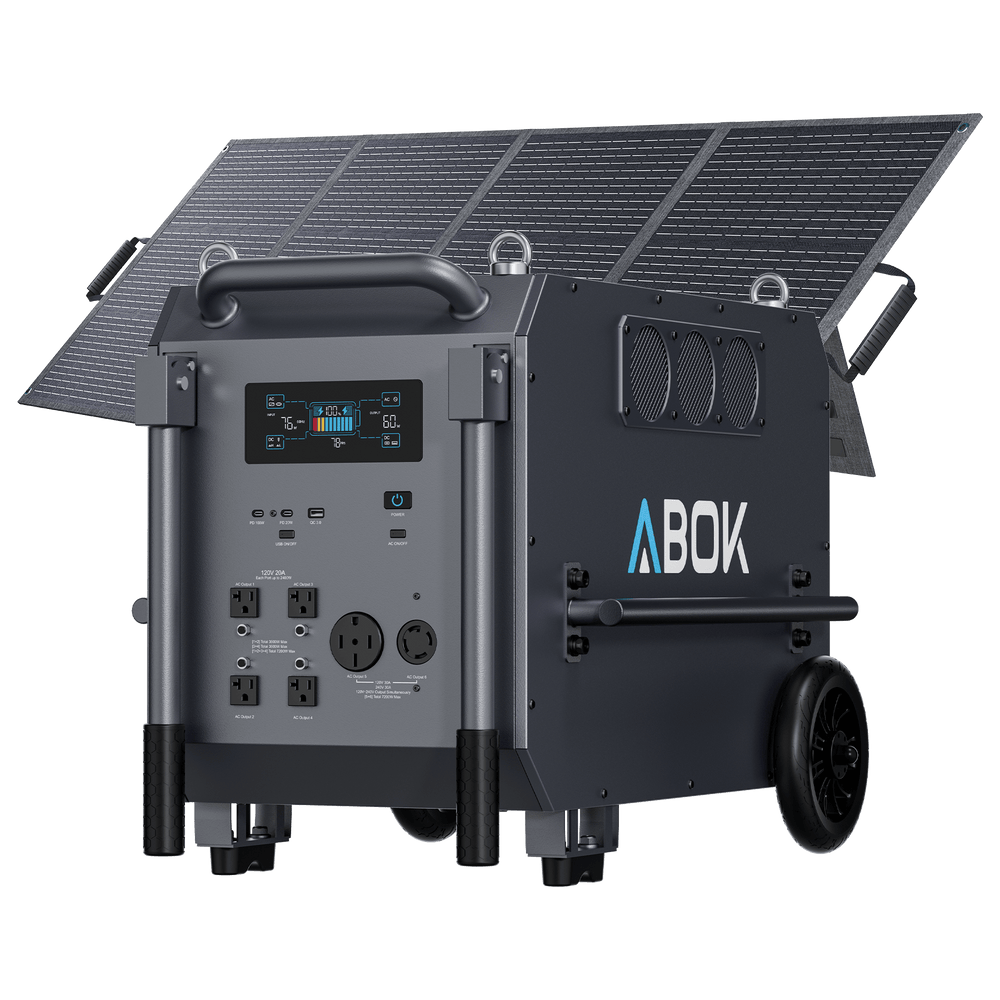

Solar Panel
Solar Panel Power
400W
Type of Solar Panel
Monocrystaline
Open-circuit Voltage
48V
Operating Voltage
40V
Short Circuit Current
11A
Operating Current
10A
OUTPUT
Output Port
MC4
Output Wire Length
1.5m
FEATURES
IP Rating
IP68
SPECIFICATIONS
Size
2730*769*30mm
Weight
9.7kg
Operating Temperature
-10℃-70℃
